X-ray Baggage Scanner /Industrial Security X-ray Machine
X-ray Baggage Scanner /Industrial Security X-ray Machine
X-ray Baggage Scanner /Industrial Security X-ray Machine
  • X-ray Baggage Scanner /Industrial Security X-ray Machine
  • X-ray Baggage Scanner /Industrial Security X-ray Machine
  • X-ray Baggage Scanner /Industrial Security X-ray Machine

X-ray Baggage Scanner /Industrial Security X-ray Machine

Penerangan produk

 X-ray Baggage Scanner /Industrial Security X-ray Machine

Product Description



Specification

  • Tunnel Size: 500(W)*300(H) mm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 20kg
  • Dose per Inspection: <2.9 μGy/h
  • Resolution: <0.101mm Metal Wire
  • Penetration: 34mm Steel
  • Film Safety: Guarantee ISO1600 Film
  • X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)



X-ray Generator

  • Generate direct: Upward
  • Generate angle: 60 degree
  • Anode Voltage: 80Kv
  • Anode power: 0.4 to 0.5mA
  • Cooling / Duty Cycle: Oil Cooling /100%

Image System

  • X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
  • Monitor: High Resolution Color, LCD Accord, 17 inch
  • Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
  • Image Grey Level: 4096
  • Image Max Resolution: 1024 * 1280 pixel
  • Image Processing: 24bit for processing real time
  • Image storage: Storage 60000 pictures in real time
  • Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Installation Data

  • Operation temperature/Humidity: 0°C-45°C/20%-95% (non-condensing)
  • Storage Temperature/Humidity: -20°C-60°C/20%-95% (non-condensing)
  • Operation Power: 220VAC (±10%)50±3Hz
  • Power Consumption: 1.0 KW (max), 0.3KW (working)
  • Noise: <65db

Application

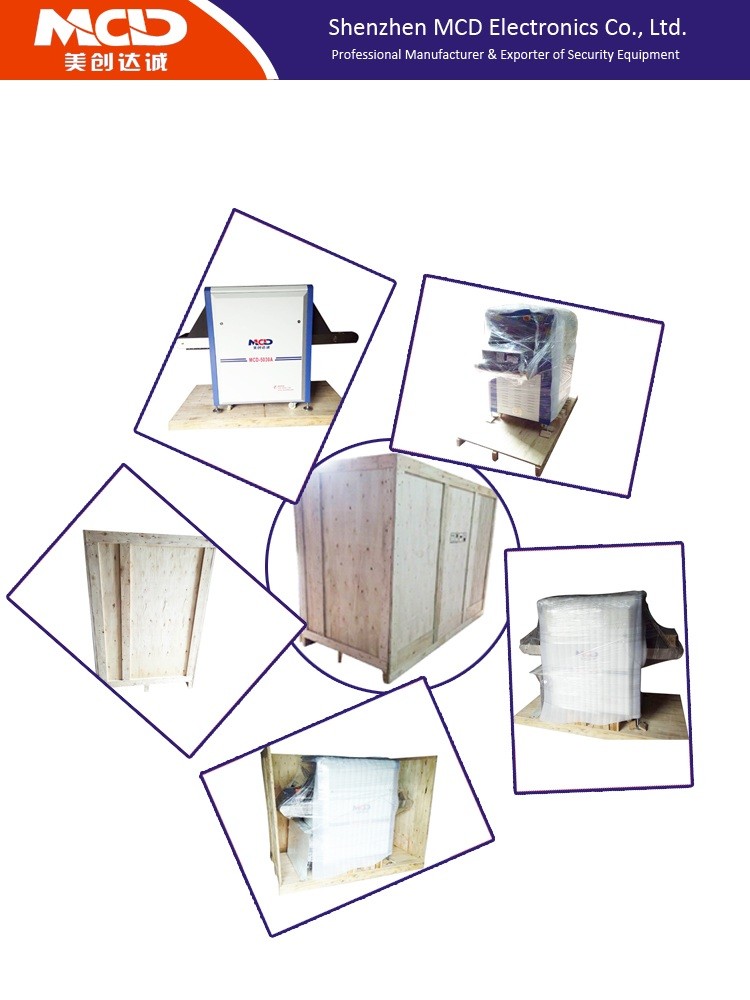

Packaging & Shipping



Shipping by express, sea, air, for your optional




Company Information

*Established in 2005

*With more than 300 people, among of which R&D 15 staffs, QC 22 people

*Main products:  X-Ray Luggage Scanner Handheld Metal Detector, Food Metal Detector, Underground                                                     Metal Detector, Under Vehicle Search System, Walkthrough Metal Detector Gate.

*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.

*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP

*Area: 12,000 Square meters




Certifications





Our Services

The Quality of Our Products:

  1. First of all, we promised that all the products are brand-new.
  2. Secondly, we have inspected quality before leaving the factory, those include but not limited to specifications, appearance, function, package, accessories and so on.
  3. Thirdly, we package the products by superior high quality carton or wooden case to ensure the completeness and low delivery loss.
  4. If you find out any problem when receive the products, we are in charge of securing service.

Shipping:

  1. We only support world-famous Express companies (EMS, DHL, UPS, FedEx), faster and safer by airline, except Long range detectors which set batteries inside (TX-MPI, VR1000BII, VR Long Range King). For reducing our shipping fee, large size articles (Walkthrough metal detector gates, X-ray security inspection machines, Needles inspection for Food industry, etc) will go Ocean shipping.

The Customs:

  1. We will declare on the invoice that it’s a gift or write down a lower price there to help you reduce tax.
  2. However, you will still need to pay the tax for the products if the customs ask.

Warranty Policy:

  1. In one month, if you’re not satisfied with product or product damaged (Not man-made), you can change unconditionally. (About changing, please contact customer service.), return shipping cost is buyer’s responsibility.
  2. 12 months warranty for all accessories and lifelong service.
